Luus Fo San Woks 2 Air-Blast Burners & 1 Centre Pot
$21,741.50
Finance Options
Product Information
Description

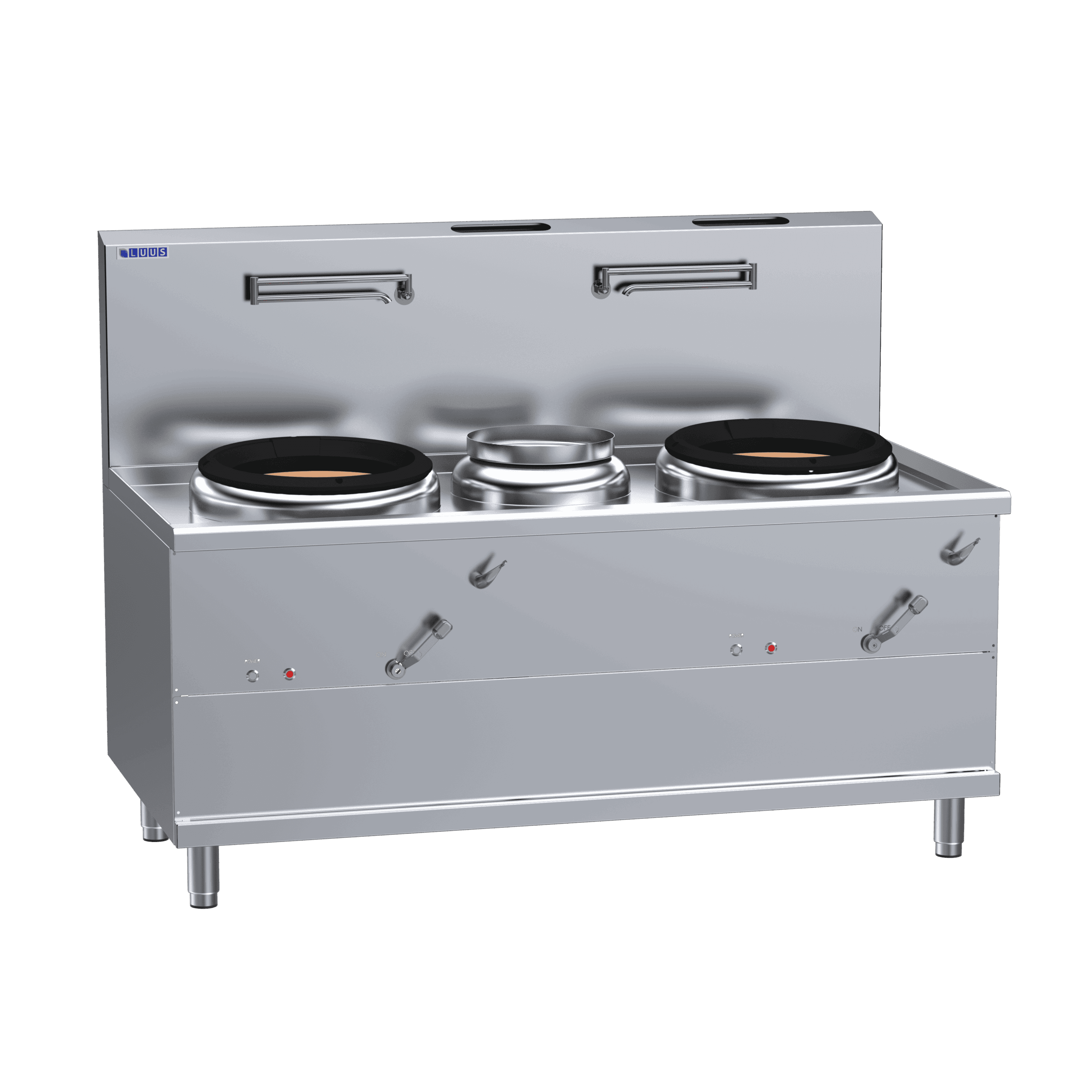

The Luus Fo San WV-1A1P1A is a 1,750 mm gas wok burner with two 145 MJ/h air-blast burners and a centre soup pot position, supplied with an 8 L pot. It suits Cantonese and other Asian restaurants running high-heat wok stations with stock kept hot between the woks.
Plan the services before delivery: two 3/4″ BSP gas inlets (290 MJ/h total), two 1/2″ water inlets, a 2″ drain and electrical inputs at 220-240 V, 10 A for the fan-forced burners. Connection must meet AS/NZS 5601 and AS/NZS 3000, and the 350 kg unit needs a canopy above and clear access for delivery. Burners light by electronic auto-ignition into fire-brick lined chambers with a rear flue. For two woks without the pot, compare the Luus Fo San 2 air-blast burner wok.
Specifications
| Specification | Value |
|---|---|
| Dimensions | |
| Width | 1,750 mm |
| Depth | 900 mm |
| Height | 1,300 mm |
| Working height | 800 mm |
| Net weight | 350 kg |
| Power | |
| Total gas rating | 290 MJ/h (natural gas or LPG) |
| Wok burners | 2 x 145 MJ/h air-blast, 3 MJ/h pilots with FFD |
| Gas inlets | 2 x 3/4″ BSP male, regulator built into gas train |
| Electrical | 220-240 V, 10 A, 50 Hz, 150 W |
| Capacity | |
| Soup pot | 1 x 8 L (supplied) |
| Water inlets | 2 x 1/2″ BSP male |
| Drain | 2″ pipe |
| Construction | |
| Panels | 304 stainless steel |
| Combustion chamber | Fire-brick lined, ceramic base, rear flue |
| Ignition | Electronic auto-ignition with burner reset |
| Compliance | |
| Installation standards | AS/NZS 3000 and AS/NZS 5601 |
Features
Inspired by the fast-paced kitchens of Hong Kong, ‘Fo San’ is Cantonese for volcano. Comes with a powerful 145MJ S/S air-blast burner, electronic ignition, external pilot, rear flue system, pre-cast fire-brick combustion chamber. Available in a variety of options/configurations.
Additional information
| Weight | 420 kg |
|---|---|
| Dimensions | 900 × 1750 × 1300 mm |
